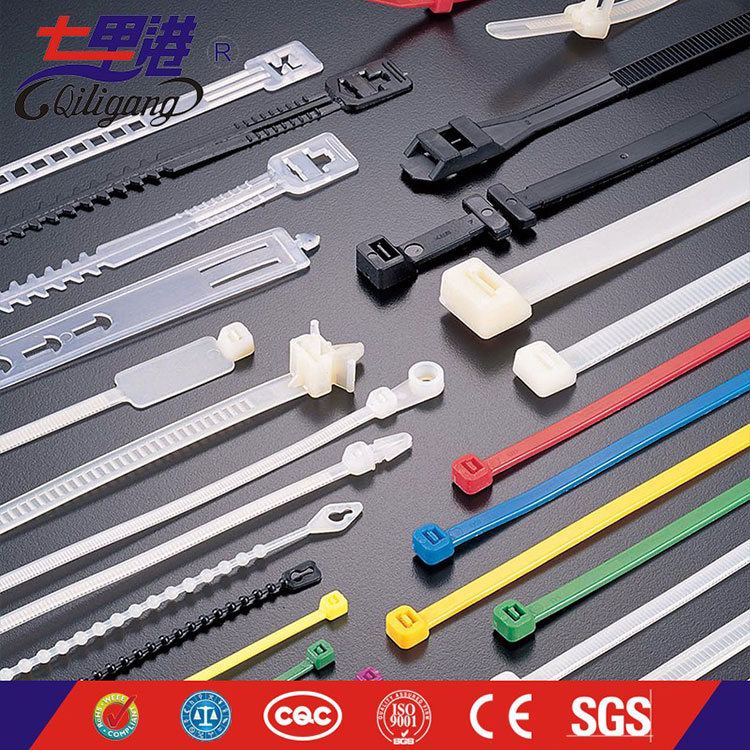

Nylon Cable Ties

Self locking alkali proof cable tie

Self locking alkali proof cable tie

Parameter table (L) (W) Bundle Dia Min Tensile Strength Item NO. Inch mm mm E(mm) LBS KGS QLS-3×60 23/8" 60

Chat Now!    +86-577-62658186

Detailed introduction

Material: Nylon 66,certificated by UL.
Description: Heat resisting,  erosion control,  insulating well and not apt to age.
Operating Temperature:-40`C~80`C
Color:white(natural color),UV-black. Red,yellow,green,blue,other colors are available as requested.
Usage:For tidying wire and cable installations
Certificates: ISO9002,CE,ROSH, PAHs.
Packing:100pcs/plastic bag (general export packing),blister packing, plastic bags with the color label, other packing are available as customers’ request.
Remark: we also accept the work such as constructing mould.printing logo on cable ties,designing special packing.

Parameter table

  (L) (W) Bundle Dia Min Tensile Strength
Item NO. Inch mm mm  E(mm) LBS KGS
QLS-3×60 23/8" 60 2.5 2-11 18 8
QLS-3×80  33/16" 80 2.5 2-16 18 8
QLS-3×100 4" 100 2.5 2-22 18 8
QLS-3×120 43/4" 120 2.5 2-30 18 8
QLS-3×150 6" 150 2.5 2-35 18 8
QLS-3×160 61/4"  160 2.5 2-40 18 8
QLS-3×200  8" 200 2.5 3-50 18 8
QLS-3×250  10" 250 3.0  3-65 18 8
QLS-3×300 12" 300 3.0  3-80 18 8

QLS-4×100 4" 100 3.5 3-22 40 18
QLS-4×120 43/4" 120 3.5 3-30 40 18
QLS-4×150 6" 150 3.5 3-35 40 18
QLS-4×160 61/4"  160 3.5 3-40 40 18
QLS-4×180 7" 180 3.5 3-42 40 18
QLS-4×200 8" 200 3.5 3-50 40 18
QLS-4×220 8 5/8"  220 3.5 3-58 40 18
QLS-4×250 10" 250 3.5 3-65 40 18
QLS-4×280 11" 280 3.5 3-70 40 18
QLS-4×300 12" 300 3.5 3-80 40 18
QLS-4×370 141/2" 370 3.5 3-102 40 18

QLS-5×120 43/4" 120 4.6 3-24 50 22
QLS-5×150 6" 150 4.6 3-35 50 22
QLS-5×180 7" 180 4.6 3-42 50 22
QLS-5×200 8" 200 4.6 3-50 50 22
QLS-5×250  10" 250 4.6 3-65 50 22
QLS-5×280 11" 280 4.6 3-70 50 22
QLS-5×300 12" 300 4.6 3-82 50 22
QLS-5×350 14" 350 4.6 3-90 50 22
QLS-5×380 15" 380 4.7 3-102 50 22
QLS-5×400 16" 400 4.7 3-105 50 22
QLS-5×450 18" 450 4.7 3-130 50 22
QLS-5×500 20" 500 4.7 3-150 50 22
QLS-5×550 22" 550 4.7 3-160 50 22

QLS-8×150 6" 150 6.8 3-33 85 38
QLS-8×180 7" 180 6.8 3-42 85 38
QLS-8×200 8" 200 6.8 3-50 85 38
QLS-8×250 10" 250 7.5 4-63 120 55
QLS-8×300 12" 300 7.5 4-82 120 55
QLS-8×350 14" 350 7.5 4-90 120 55
QLS-8×370 141/2" 370 7.5 4-98 120 55
QLS-8×400 16" 400 7.5 4-105 120 55
QLS-8×450 18" 450 7.5 4-118 120 55
QLS-8×500 20" 500 7.5 4-150 120 55
QLS-8×750 30" 750 7.5 4-220 120 55

QLS-9×400 16" 400 9.0  8-105 175 80
QLS-9×450 18" 450 9.0  8-118 175 80
QLS-9×500 20" 500 9.0  8-150 175 80
QLS-9×550 22" 550 9.0  8-160 175 80
QLS-9×650 26" 650 9.0  8-190 175 80
QLS-9×700 27 1/2" 700 9.0  10-205 175 80
QLS-9×750 30" 750 9.0  10-220 175 80
QLS-9×920 36 1/4" 920 9.0  10-265 175 80
QLS-9×1020 40" 1020 9.0  10-295 175 80
QLS-9×1210 47 3/4" 1210 9.0  10-340 175 80

QLS-12×650 26" 650 12.0  14-190 250 110
