Flat Cable Clip Supplier

Datetime: 9/19/2019 9:48:00 AM   Visit: 675

product description

Flat Cable Clip

Flat Cable Clip Supplier_Flat Cable Clip

Flat Cable Clip for use with speaker flex and Bell Wire.

  • Material: made from PE (white,grey)
  • Trail: elasticity and shock resisting, inserting type,nail attached in clips

Directions:

Place clip over cable and hammer nail gently,ensuringing that it is square in the cable clip.

When fixing to hard brickwork,hammer the nail into a joint wherever possible to ensure a secure fitment

Technical Parameter:

Item No. (mm) Dia (mm)
  H R A Nail Size
QLSF-4MM 6 4 3.8 1.7×14
QLSF-5MM 6 5 3.8 1.7×14
QLSF-6MM 6.5 6 4.1 1.7×16
QLSF-7MM 7 7 4.7 1.7×16
QLSF-8MM 7.5 8 5 1.8×17
QLSF-9MM 8.3 9 5.4 1.9×17
QLSF-10MM 8.6 10 5.7 2.0×20
QLSF-12MM 9 12 6.1 2.1×22
QLSF-14MM 10 14 7 2.1×22

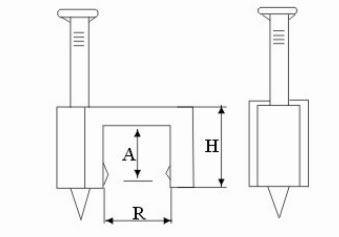

Outline:

Flat Cable Clip Supplier_Flat Cable Clip drawing



Circle Cable Clip

Flat Cable Clip Supplier_Circle Cable Clip

Circle Cable Clip for use with satellite cable and pump cable

  • Material: made from PE (white,grey)
  • Trail: elasticity and shock resisting, inserting type,nail attached in clips
  • Directions: Place clip over cable and hammer nail gently,ensuringing that it is square in the cable clip.  When fixing to hard brickwork,hammer the nail into a joint wherever possible to ensure a secure fitment.
  • Package: plastic bucket,bandbox,plastic box

Technical Parameter:

Item No. High(H) High(H1) Diameter(mm) Nail Size
QLSH-3.5MM 4.5 4 R-3.5 1.5×14
QLSH-4MM 6.6 4.2 R-4 1.6×14
QLSH-5MM 7.6 5.3 R-5 1.6×14
QLSH-6MM 9 6.6 R-6 1.7×16
QLSH-7MM 11 7.2 R-7 1.7×16
QLSH-8MM 11.5 8.6 R-8 1.8×18
QLSH-9MM 12 9 R-9 1.9×19
QLSH-10MM 13.4 10.5 R-10 2.0×22
QLSH-12MM 16 12.5 R-12 2.1×25
QLSH-14MM 20.5 15.6 R-14 2.2×27
QLSH-16MM 21.7 17 R-16 2.3×30
QLSH-18MM 23.5 18.5 R-18 2.5×32
QLSH-20MM 23.5 18.5 R-20 2.5×38
QLSH-22MM 27.8 22.5 R-22 2.7×40
QLSH-25MM 31.6 26 R-25 2.8×45
QLSH-30MM 32.6 30 R-30 3.0×55(Double)
QLSH-32MM 40 33.5 R-32 3.2×55(Double)
QLSH-35MM 42 41.5 R-35 3.5×55(Double)
QLSH-40MM 45 42.5 R-40 3.5×60(Double)

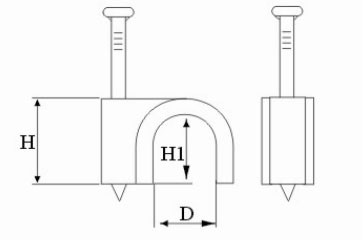

Outline:

Flat Cable Clip Supplier_Circle Cable Clip drawing



Company Profile

Yueqing Qiligang Plastic Co., Ltd  was established in 1996, is specialized in manufactuing and selling various plastic products, such as nylon cable ties, nail cable clips, expandnails, nylon cable glands, witing ducts, tube pre-insulating terminals, cable markers, safety-type wire joints, screw on wire co-nnectors, spiral wrapping bands, and set pieces, as well as such metal products as tube nude terminals and copper tube terminals and so on. We have self R&D Team. We can accept constructing plastic mould task if you have special design.

Our factory Care the quality first, have passed ISO9001,and Most of Our production strictly have passed CE/SGS/REACH/ROHS standards.

Our products are exported to Southeast Asia, Africa, Europe,  America, Australia, and other countries and regions, and obtained the high reputation by the customers all over the world. In order to further enlarge our business, we are looking forward to receiving more specific enquiries and cooperating strongly with all clients based on mutual benefits.
